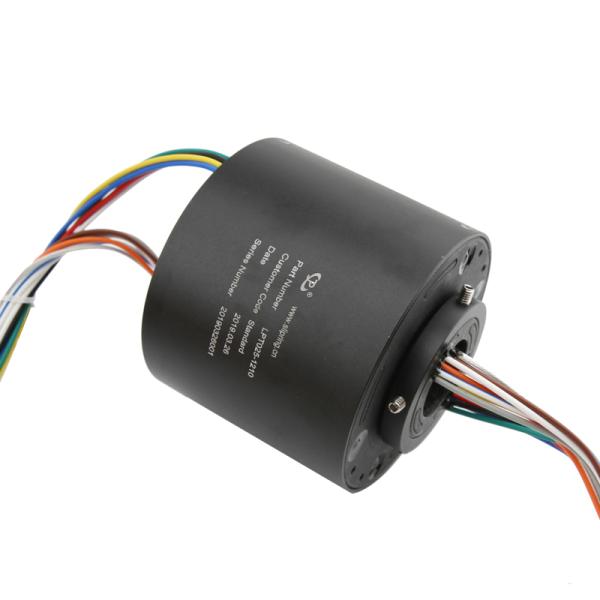

12 Circuit 10A Through Hole Slip Ring 24.5mm Precious Metal Contact

Bargain Price Only in Alibaba

LPT slip rings are through-hole slip rings (the center hole can pass through the drive shaft, gas-liquid passage; it can also integrate high frequency, fiber, encoder, waveguide, gas and liquid and other joints). Using advanced fiber brush, reliable contact is guaranteed with very low friction. The center hole can be selected from 0 to 1000mm, the current can be selected from mA to 5000 amps, and the voltage can be up to 10000 volts, which can fully meet your different transmission schemes.

Description

The LPT025-1210 slip ringcan be used in any electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. The slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals.

Features

• 240V voltage
• 300rpm rotating speed
• Precious metal contact
• Aluminum alloy housing
• Long servive life
• Custom solution
• Prompt delivery

Specification

Application

• Semiconductor handling systems
• Industrial machinery
• Packaging/wrapping machinery
• Medical equipment
• Rotary index tables
• Cable Reels

Outline Drawing

Product Display

Welcome to JINPAT Electronics

Providing free custom slip rings solutions,creating propulsion for your technology

• With a large plant of over 12,000 square meters and more than 500 employees.
• The company has been awarded the title of "National High and New Technology" and has obtained 69 patents.
• Long-term cooperation with global famous enterprises and agents all over the world.
• With Over 10,000 designs with success in civil, military, commercial and industrial applications.
• Founded in 1996, with more than 20 years of production and R & D experience.
• Providing free custom slip rings solutions,which can be suitable for a variety of equipment
• Fast delivery

1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

2. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

3.What kinds of slip rings do we provide

• Electrical Slip rings (capsule slip ring,through-hore slip ring,miniture slip ring, etc)
• Signal Slip rings (USB2.0/USB3.0 slip ring,fiber optic rotary joint,high frequency slip ring,etc)
• Pneumatic/Hydraulic Rotary Unions
• Custom Slip Rings
• Large volume series

4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

5. Do you provide custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
